UniMate Drive is a smart card USB PKI authentication token with partitionable flash memory that employs strong on-board cryptography, as well as flash storage for digital credentials and distribution of software/information to easily roll-out to end users. The UniMate Drive comes as standard with High Performance USB Attached SCSI Protocol (UASP) – which is the latest USB 3.0 compatible transfer protocol to quickly transfer data between devices.
UniMate supports multiple international standards including: RSA (USA/Europe), ECC for DSTU and ECC/SM (China), with future support for upcoming standards. Middleware support for PKCS#11, MS-CAPI and miniDriver as standard.
Partitions:
Public
Virtual CD-ROM
Two Factor Authentication (TFA)
As opposed to single-factor authentication, where only a password is required to verify the user’s credentials, two-factor authentication requires two separate modes of validation: “something you know” – the password, & “something you have” – the UniMate device. Both password and the UniMate are needed to successfully complete the login process. UniMate features the ability to generate encryption keys and store: passwords, digital certificates and personal credentials within the token.
Smart Card Technology
The UniMate USB/Mini device is optimized with a 32-bit smart card to generate RSA encryption key pairs quickly onboard the token, enabling sophisticated security with minimal hassle and effort.
High-Performance USB Attached SCSI Protocol (UASP)
The UniMate device is optimized with the latest USB 3.0 compatible transfer hardware and protocol, used to quickly transfer large data between devices.
On-Board Encryption
Encryption and decryption processes take place on-board the UniMate USB device, minimizing the risk of interception when performing the process locally on the host computer.
Encrypted Credential Support
Credentials are encrypted and stored on the device and cannot be exported.
Non-Repudiation Digital Signing
Offers non-repudiation digital signing and storing of transactions and documents through PKI technology, ensuring the authenticity of electronic transactions.
Multiple Encryption Algorithms
Makes use of several industry-approved encryption algorithms including
- AES
- DES
- 3DES
Hashing Algorithms:
- MD5
- SHA-1
Cryptography Standards
Supports MS-CAPI, PKCS#11, X.509 certificates and smart card minidriver standards.
3 Level Permission System
Implements a three-level permission system: Administrator, User, and Guest, in order of most to least privileges determining the functions that can be performed with the token.
Dual Identifiers
Employs both a unique global hardware ID and user-defined 32-bit software ID for identification of UniMate USB devices
Multi-Platform
Support on a wide variety of operating systems including:
- Windows98 SE/ME/XP/Vista/7/8.1/10 (32 & 64 bit)
- Windows Server 2000/2003/2008/2012
- Linux(2.4+)
- Mac OS X(10.4+)
- Free BSD(5+)
- ARM 9
- MIPS

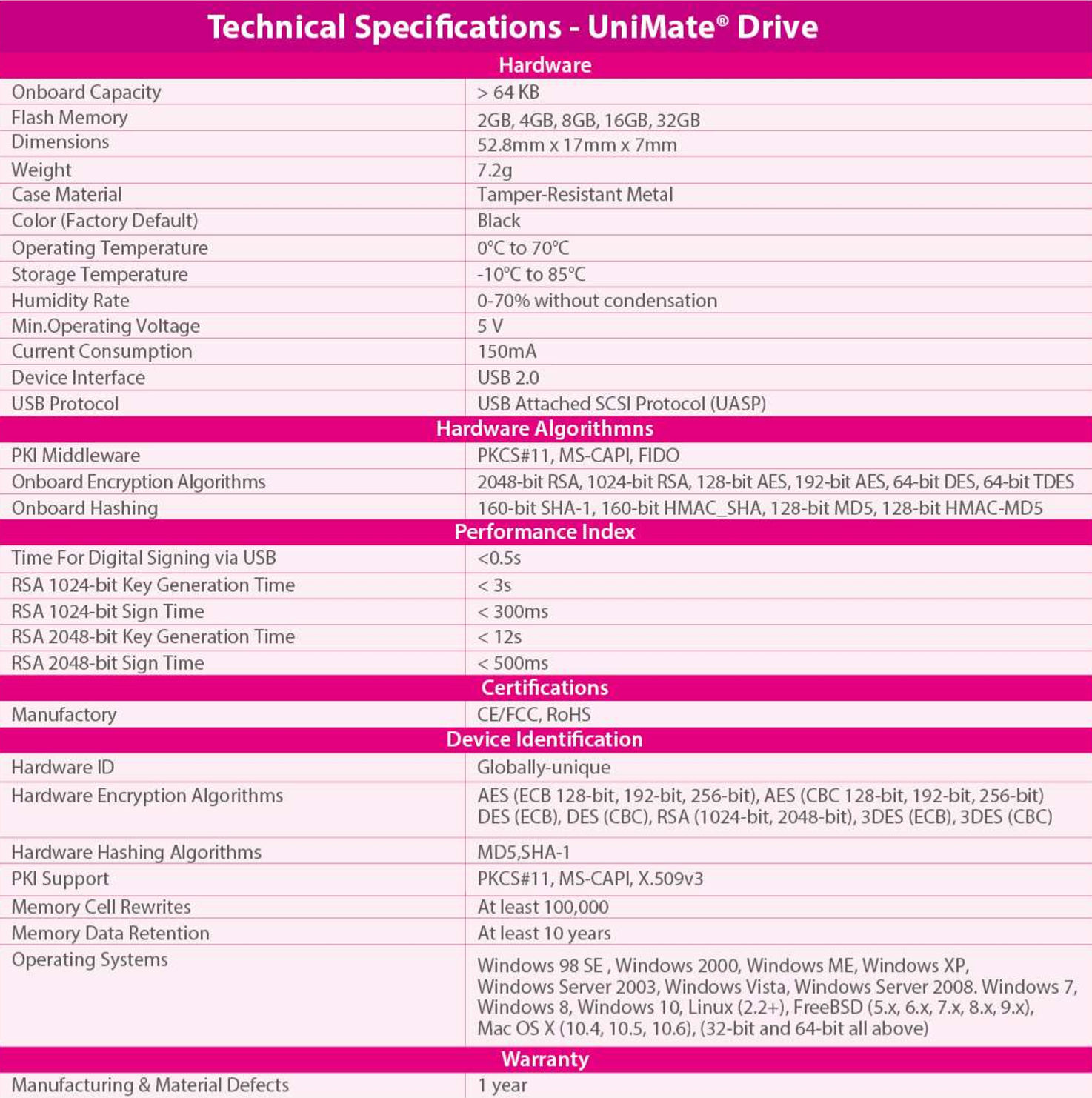

See the Specifications tab for the complete list of supported platforms, or message us directly.
Two Factor Authentication (TFA)
As opposed to single-factor authentication, where only a password is required to verify the user’s credentials, two-factor authentication requires two separate modes of validation: “something you know” – the password, & “something you have” – the UniMate device. Both password and the UniMate are needed to successfully complete the login process. UniMate features the ability to generate encryption keys and store: passwords, digital certificates and personal credentials within the token.
High Performance Smart-Card Device
Each UniMate device is optimized with a 32-bit smart card to generate RSA encryption key pairs quickly onboard the token, enabling sophisticated security with minimal hassle and effort.
Flash Memory with Two Partitions
UniMate Drive tokens come with 2 ~ 32GB flash memory in two partitions: Public - mass storage plug-and-play partition where users can freely access and modify data, and Virtual CD-ROM (AutoRun) - read only partition with autorun to easily distribute your software/information to the end user with the peace of mind knowing that data stored will always be intact and will not be modified.
High-Performance USB Attached SCSI Protocol (UASP)
UASP is designed to be optimized with the latest USB 3.0 compatible transfer hardware and ensures that transfers are fast.
Multitude of Algorithms and Middleware
- PKI Middleware: PKCS#11
- PKI Middleware: MS-CAPI
- 2048-bit RSA
- 1024-bit RSA
- 128-bit AES
- 192-bit AES
- 64-bit DES
- 64-bit TDES
- 160-bit SHA-1
- 160-bit HMAC_SHA
- 128-bit MD5
- 128-bit HMAC_MD5 and more.
Latest Technology
Combining our industry experience with cutting edge technology, SecuTech provides the best of the best authentication solutions to our customers. Our latest technology serves thousands of governments, companies, resellers, individual developers and institutions worldwide.
Environmentally Friendly
SecuTech recognises the importance of reducing our carbon footprint. We pride ourselves in adopting green policies such as reducing waste, re-using and recycling. All parts and production processes of UniMate devices are lead-free and ROHS-compliant. Our top of the line products are ISO 9001;2000 certified.
Hardware Customization
SecuTech understands the importance of brand recognition. We offer colour customisation of our UniMate products as well as laser-etching options for text or logos. Want to remove SecuTech’s branding and replace it with your own? Not a problem!
Free Technical Support
SecuTech currently serves customers in over 62 countries, we offer excellent free technical support for any issues you may have. Our technical professionals work closely with customers to deliver the utmost level of satisfaction.
Case Studies
Beijing Certificate Authority Case Study
Datasheets
Quick Start Guide
UniMate Quick Start Guide (via Wiki)
Video Guides
UniMate Video Guides (via Wiki)
Evaluation Request
We offer a wide range of OEM customization options, from simple color-coding to logo laser engraving.
Case Colors
Keep track of your UniMate through color-coding, or ensure the color scheme is in line with your brand’s image.
Text Engraving
Ensure identification by engraving your token’s ID, serial number, or custom text on to your UniMate.
Logo Engraving
Want to take it a step further? Engraving options extend to company logos, enabling you to integrate UniMate tokens seamlessly into your organisation’s image.
Straps
Keep hold of your tokens with customizable straps, available in many colors.
For non-customized orders, buy the UniMate Drive (8 GB, 16 GB, 32 GB) from our online store and enjoy FREE DELIVERY.
