Software Protection
Software protection has always been an integral part of modern businesses. With SecuTech’s wide range of driverless UniKey® dongles this has never been easier to achieve. The UniKey® ensures not to burden the user, while providing exceptional functionality options to the developer to ensure their vision is met.

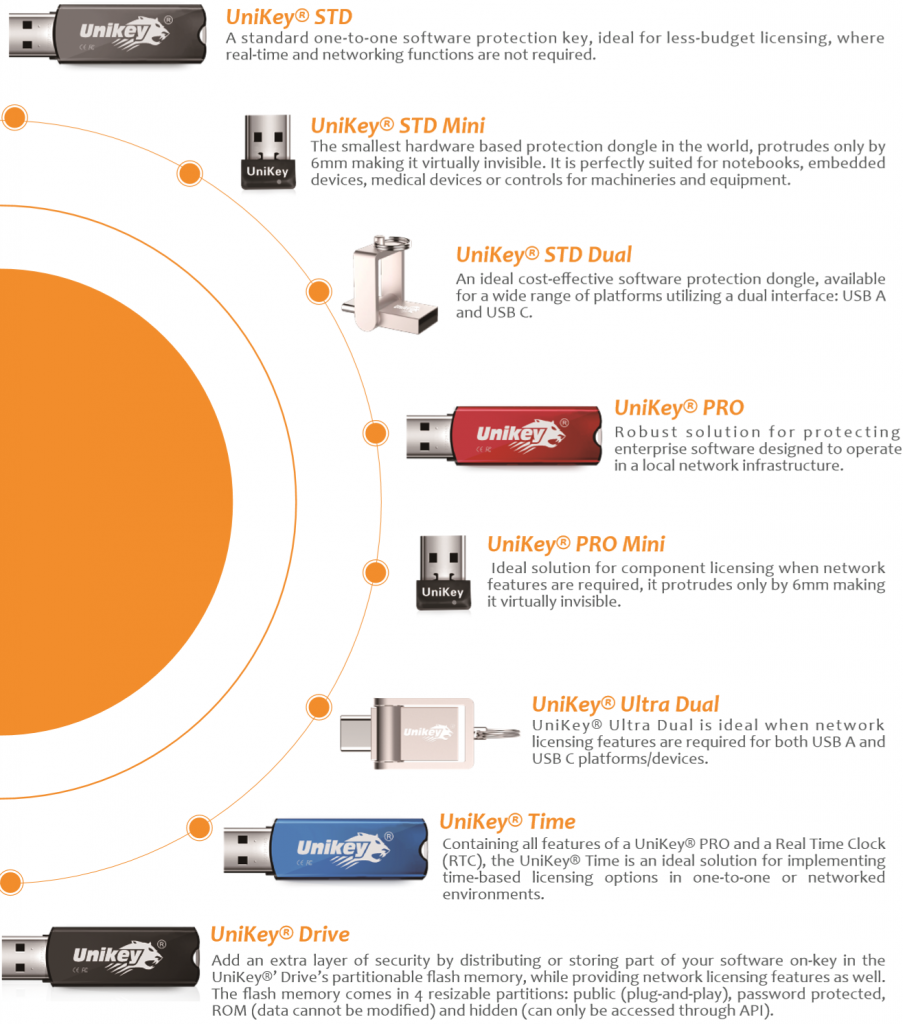

Quick Comparison
| STD | STD Dual | Pro | Time | Drive | Ultra Dual | |
| Software Protection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Network Sharing | ✓ | ✓ | ✓ | ✓ | ||
| Hardware Clock | ✓ | |||||
| Flash Storage | ✓ | |||||
| Mini Form-factor | ✓ | ✓ | ✓ | ✓ | ||
| USB C Support | ✓ | ✓ |
Full Comparison
| Product Details | ||||||
| Product | UniKey STD | UniKey STD Dual | UniKey PRO | UniKey Time | UniKey Drive 2GB | UniKey Ultra Dual |
| Weight | 6.30g
[Mini: 2.40g] |
8.40g | 6.30g
[Mini: 2.40g] |
6.30g | 6.30g | 8.40g |
| Dimensions (L x W x H) | 52.80mm x 17.00mm x 7.00mm
[Mini: 24.60mm x 15.00mm x 7.00mm] |
40.30mm x 16.00mm x 7.00mm | 52.80mm x 17.00mm x 7.00mm
[Mini: 24.60mm x 15.00mm x 7.00mm] |
52.80mm x 17.00mm x 7.00mm | 52.80mm x 17.00mm x 7.00mm | 40.30mm x 16.00mm x 7.00mm |
| Certifications | ||||||
| Manufactory |
EN 60950 (Information Technology Equipment – Safety)
CE/FCC (FCC Declaration of Conformity) RoHS (Restriction of Hazardous Substances Directive) REACH Certificate of Compliance |
EN 60950 (Information Technology Equipment – Safety)
CE/FCC (FCC Declaration of Conformity) RoHS (Restriction of Hazardous Substances Directive) REACH Certificate of Compliance |
EN 60950 (Information Technology Equipment – Safety)
CE/FCC (FCC Declaration of Conformity) RoHS (Restriction of Hazardous Substances Directive) REACH Certificate of Compliance |
EN 60950 (Information Technology Equipment – Safety)
CE/FCC (FCC Declaration of Conformity) RoHS (Restriction of Hazardous Substances Directive) REACH Certificate of Compliance |
EN 60950 (Information Technology Equipment – Safety)
CE/FCC (FCC Declaration of Conformity) RoHS (Restriction of Hazardous Substances Directive) REACH Certificate of Compliance |
EN 60950 (Information Technology Equipment – Safety)
CE/FCC (FCC Declaration of Conformity) RoHS (Restriction of Hazardous Substances Directive) REACH Certificate of Compliance |
| Device Identification | ||||||
| Hardware ID | 32-bit globally-unique | 32-bit globally-unique | 32-bit globally-unique | 32-bit globally-unique | 32-bit globally-unique | 32-bit globally-unique |
| Software ID | 32-bit user-defined | 32-bit user-defined | 32-bit user-defined | 32-bit user-defined | 32-bit user-defined | 32-bit user-defined |
| Features – UniKey | ||||||
| Licensing Modules | 64 | 64 | 64 | 64 | 256 | 64 |
| Licensing Schemes |
Feature-based licensing
Usage-based licensing Subscription-based licensing Trial-based licensing and more |
Feature-based licensing
Usage-based licensing Subscription-based licensing Trial-based licensing and more |
Feature-based licensing
Usage-based licensing Subscription-based licensing Trial-based licensing Floating licensing Volume licensing and more |
Feature-based licensing
Usage-based licensing Subscription-based licensing Trial-based licensing Floating licensing Volume licensing Time-based and more |
Feature-based licensing
Usage-based licensing Subscription-based licensing Trial-based licensing Floating licensing Volume licensing and more |
Feature-based licensing
Usage-based licensing Subscription-based licensing Trial-based licensing Floating licensing Volume licensing and more |
| Network Support | Up to 65535 remote users | Up to 65535 remote users | Up to 65535 remote users | Up to 65535 remote users | ||
| Memory | ||||||
| Capacity | 4 KB | 4 KB | 4 KB | 4 KB | 2/4/8/16/32/64 GB | 4 KB |
| Memory Cell Rewrites | At least 1,000,000 | At least 1,000,000 | At least 1,000,000 | At least 1,000,000 | At least 1,000,000 | At least 1,000,000 |
| Memory Data Retention | At least 30 years | At least 30 years | At least 30 years | At least 30 years | At least 30 years | At least 30 years |
| Physical | ||||||
| Case Material |
Metal and Plastic
[Mini: Plastic] |
Metal |
Metal and Plastic
[Mini: Plastic] |
Metal and Plastic | Metal and Plastic | Metal |
| Color (Factory Default) | Grey | Silver | Red | Blue | Black | Silver |
| Current Consumption (mA) | = 150 | = 150 | = 150 | = 150 | = 150 | = 150 |
| Device Interface | USB 2.0 | USB 2.0/USB C | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0/USB C |
| Humidity Rating (without condensation) | 0 – 70% | 0 – 70% | 0 – 70% | 0 – 70% | 0 – 70% | 0 – 70% |
| Minimum Operating Voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Operating Temperature | 0 °C ~ 70 °C | 0 °C ~ 70 °C | 0 °C ~ 70 °C | 0 °C ~ 70 °C | 0 °C ~ 70 °C | 0 °C ~ 70 °C |
| Storage Temperature | -10 °C ~ 85 °C | -10 °C ~ 85 °C | -10 °C ~ 85 °C | -10 °C ~ 85 °C | -10 °C ~ 85 °C | -10 °C ~ 85 °C |
| USB Protocol | HID | HID | HID | HID | HID | HID |
| Platforms | ||||||
| IDEs & Programming Languages |
Access (2000, 2003, 2007)
AutoCAD Borland C++ Builder (5, 6) Clarion dBaseFortran Delphi (5, 6, 7, 2006, 2007, 2009, 2010, XE, XE2, XE3) Director FileMaker Fortran (95) Java LabView LabWindows Matlab MinGW NSIS PowerBuilder (9) PureBasic Visual Basic (6) Visual Basic.NET (2002, 2003, 2005, 2005, 2008) Visual C#.NET (2002, 2003, 2005, 2005, 2008) Visual C++ (6, 7, 8, 9, 10) Visual C++.NET (2002, 2003, 2005, 2005, 2008) Visual DataFlex Visual Foxpro (9, 10) Visual Object Cobol Visual Studio (6.0, 2003, 2005, 2008, 2010, 2013) WinDEV and more. Contact SecuTech directly for the latest IDE’s |
|||||
| Instruction Sets | x86-64, ARM9, MIPS | |||||
| Operating Systems |
Windows 98 SE
Windows 2000 Windows ME Windows XP Windows Server 2003 Windows Vista Windows Server 2008 Windows 7 Windows 8 Windows 8.1 Windows 10 Linux (2.2+) FreeBSD (5+) Mac OS X (10.4+) (32-bit and 64-bit all above) Contact SecuTech directly for the latest OS support. |
|||||
| Security | ||||||
| Device to Host Communication | AES 128-bit encrypted, replay-attack proof | AES 128-bit encrypted, replay-attack proof | AES 128-bit encrypted, replay-attack proof | AES 128-bit encrypted, replay-attack proof | AES 128-bit encrypted, replay-attack proof | AES 128-bit encrypted, replay-attack proof |
| Warranty | ||||||
| Manufacturing & Material Defects | 1 year warranty | 1 year warranty | 1 year warranty | 1 year warranty | 1 year warranty | 1 year warranty |
| Battery | 4 years | |||||
| Features – UniKey – Real-Time Clock | ||||||
| RTC Support | On-board, battery-powered real-time clock | |||||
| RTC Licensing Modules | 16 | |||||
| RTC Accuracy | 12 miutes clock drift per year (measured at 20 °C) | |||||
| Flash Memory | ||||||
| Capacity | 2 GB [separate 4 GB, 8 GB, 16 GB, 32 GB models available] | |||||
| Resizeable Partitions |
Normal (Read & write)
Virtual CD-ROM (Read-only) Password Protected (Encrypted password protection) Hidden (API-access only) |
|||||
Last updated: 2018-08-07
Please compare UniKey products on our online store, or message us directly for the latest specifications.
