UniKey Burner

Version 8.4

Version 1.0 1.1 1.2 1.3 2.0 2.1 2.2 3.0 4.0 5.0 6.0 7.0 7.1 7.3 8.0 8.1 8.2 8.3 8.4
Date 2006.1 2006.8 2006.10 2006.12 2007.2 2007.4 2007.8 2008.5 2008.8 2009.3 2010.4 2010.6 2010.8 2010.9 2012.3 2012.4 2016.5 2016.7 2018.2

Introduction

UniKey Burner is a tool for burning/setting up individual UniKey dongles, or in a batch.

The Burner tool for UniKey STD, PRO and Time can be found within the UniKey SDK under the directory:

UniKey SDK\Utilities\Burner\

The Burner tool for UniKey Drive can be found within the UniKey Drive SDK under the directory:

UniKey Drive SDK\Utilities\Burner\

Setting

To begin configuring the UniKey Burner tool, please input the 4 passwords as set for the connected UniKey. Tick the Generate New Passwords box and enter a numerical value into "SEED" to generate new passwords based off the seeding value. Please input a maximum of 8 digits into the "SEED" box. A new password will be generated by the burner tool automatically. In the SID (Software Identity) Generation Method, there are 4 different SID generation modes:

  • All the same: All UniKeys created by the UniKey burner under the current session will have the same SID.
  • Increase: The UniKey SID will increment after each successful creation.
  • Decrease: The UniKey SID will decrease after each successful creation.
  • Time/Date: The new UniKey SID will be based off the time and date of creation

Please click on the [...] button under UKY Files to load the settings .uky created by the UniKey Console tool.

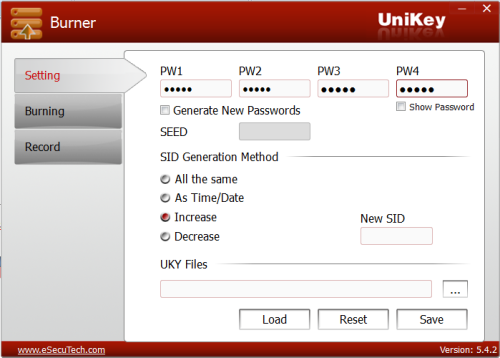

UniKey Burner settings tab

The "Save" button saves all the settings to a file, "Load" button will re-open the settings from a file set previously, and "Reset" clears all settings.

Burning

Once all the settings have been made, please insert a UniKey into the USB port. By clicking on the Burn button, the current settings will be set on the UniKey. Please tick "In Batch" if you wish to burn multiple UniKeys.

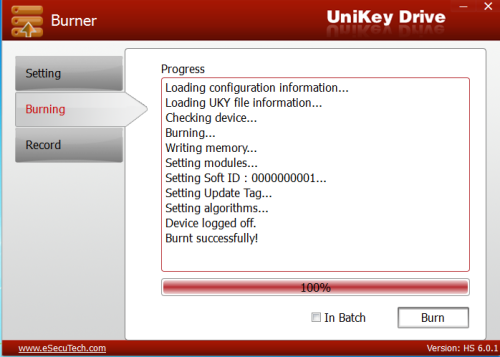

UniKey Burner burning tab

The Progress bar shows the progress percentage, and status feedback is provided by the progress details message box above. Once burning has completed, please remove the UniKey from the port. DO NOT REMOVE THE UniKey WHILST IT IS BEING WRITTEN. If the In Batch option has been ticked, the pop up below will indicate when it is safe to remove and insert a new UniKey.

please insert the next UniKey Drive

Record

The "Record" tab shows the work done by UniKey Burner, the "Print" button allows you to print information for your own records.

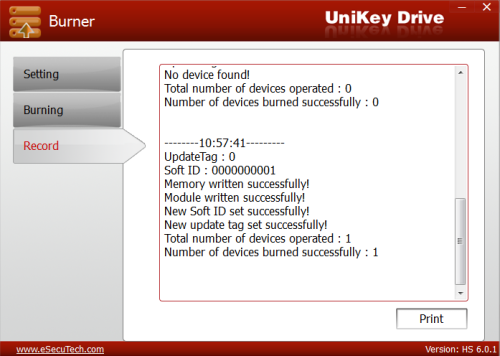

UniKey Burner record tab
