UniOTP Management System

Introduction

The UniOTP Management System is a web-based management system. Administration and maintenance operations concerning dynamic password system configuration such as user information, token information, operator information and log information can be performed with this system.

The system employs different levels of privileges for compartmentalization of information and tasks.

Operator Login

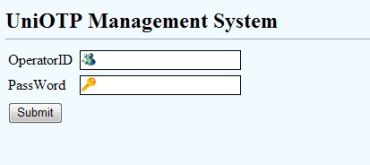

On the login page of the UniOTP Management System, input the Operator ID in the [OperatorID] field and enter the corresponding password in the [Password] field. Click [Submit] to log in.

The default Operator ID for the Super Operator is "1000000001" with the corresponding default password "123456", both without quotation marks.

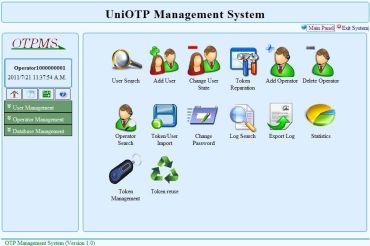

If Operator login was successful, the administration interface will be accessible on the main page, otherwise an error message will appear if login credentials are incorrect.

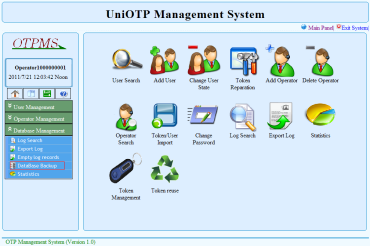

From the administration interface, actions to perform can be chosen from the menu on the left or from the shortcut icons in the main panel.

Logout

To logout of the system, click [Exit System] located on the top-right of the window, as shown in the screenshot above. For security purposes, please always use this method to log out ofthe system.

File:Uniotpmgs img03.jpg

Change Password

From the administration interface, click on [Change Password] from either under the [Operator Management] menu on the left or the [Change Password] shortcut on the main panel.

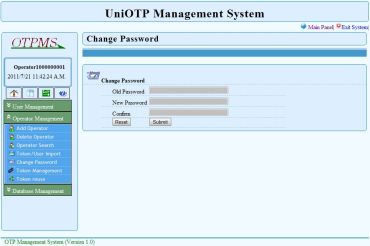

In the "Change Password" interface, input the current password in the [Old Password] field, and enter the new password in both the [New Password] and [Confirm] fields, enter the new password. Click [Submit] to apply changes.

A message will appear indicating if the password change was successful or unsuccessful.

Search User

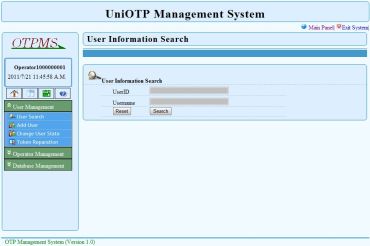

From the administration interface, click on [User Search] from either under the [User Management] menu on the left or the [User Search] shortcut on the main panel.

Users can be searched by either User ID or Username. Fill either field then click [Search].

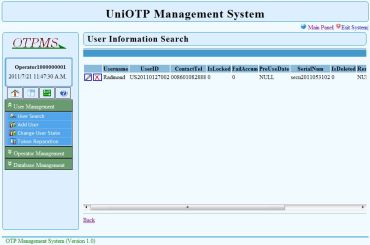

For example, if searching User ID "US20110127002", without quotation marks, a .

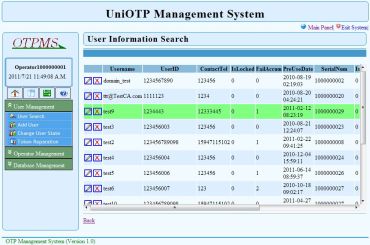

If you enter "t" in the Username field, you will see information about all users whose username contains a [t], you can choose the user you want to manage, modify or delete the user or his information.

Add a User

From the administration interface, click on [Add User] from either under the [User Management] menu on the left or the [User Search] shortcut on the main panel.

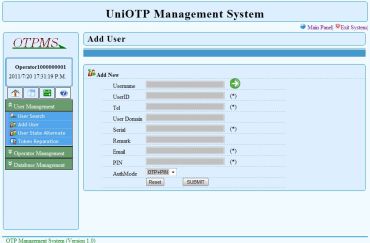

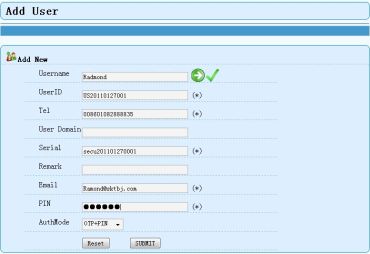

In the "Add User" interface, fill in the corresponding fields (a unique) username in [Username], (a unique) user ID in [UserID], contact number in [Tel], the serial ID of the corresponding UniOTP device for the user in [Serial], email address in [Email], the user PIN, and authentication method (OTP+PIN, generated one-time password with the user PIN, is recommended for maximum security).

Either username or user ID can be used interchangeably when authenticating.

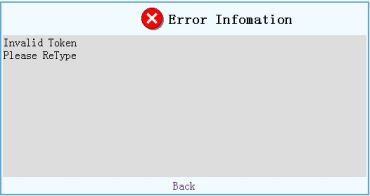

If an invalid token serial number is entered, the error message below will appear.

After inputting valid user information, click [Submit].

The below notification will appear if the user was added successfully.

Change User State

From the administration interface, click on [Add User] from either under the [User Management] menu on the left or the [User Search] shortcut on the main panel.

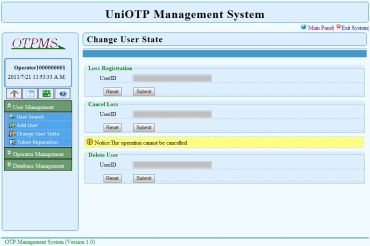

Under the Change User State interface, functions such as flagging a token as lost/stolen, unflagging lost/stolen tokens and permanently removing tokens can be performed. Functions are performed on users based on the user's User ID.

Resynchronize Token

Under certain circumstances, a token may desynchronize with the server. In this case, the token must be resynchronized with the server to be able to authenticate with it. This can be done from the [Token Reparation] interface.

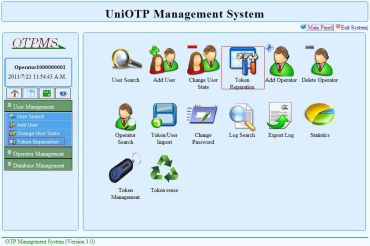

From the administration interface, click on [Token Reparation] from either under the [User Management] menu on the left or the [Token Reparation] shortcut on the main panel.

To resynchronize the token, the User ID of the user whom the token is assigned under and the token itself is needed.

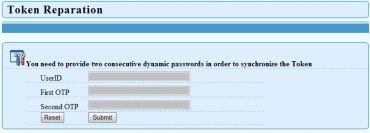

Input the User ID in [UserID]. Afterwards, generate a one-time password from the token device, then input the generated OTP in [First OTP]. Generate a second OTP immediately after the previously generated OTP, and input the generated OTP in [Second OTP]. Two consecutive one-time passwords are needed in order for the the server and the token to be synchronized. When done, click [Submit].

The below message will appear when synchronization is successful.

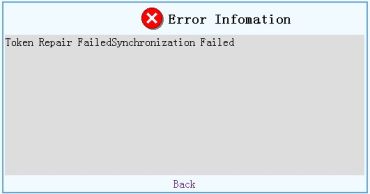

If the two generated one-time passwords are not consecutive with one another, or if the generated OTPs exceeds a certain generation range, synchronization with fail, and an error message similar to below will appear.

Add Operator

Under the Add Operator interface, new operators can be added into the system. The user to be added should not be one with a higher privilege level than the operator privilege level, otherwise the operation will be denied.

From the administration interface, click on [Add Operator] from either under the [Operator Management] menu on the left or the [Add Operator] shortcut on the main panel.

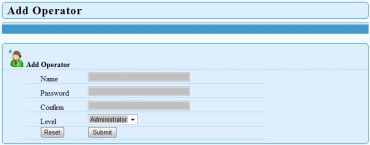

In the "Add Operator" interface, input the [Name], [Password] and [Confirm] password, and select the privilege level in the [Level] list, then click [Submit].

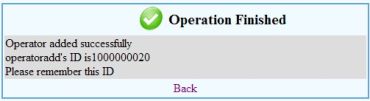

If the operation is successful, the following message will be returned. The Operator ID of newly added operator will be displayed.

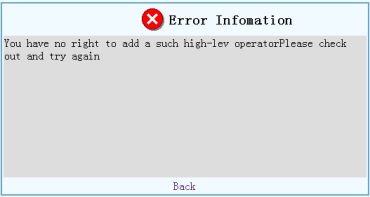

If the privileges of the new user is higher than the operator level or that of the current user, the following error message will appear.

Delete Operator

The Delete Operator interface provides removal of an operator from the database. An operator can only be deleted if the privilege level of the current user is higher the the privilege level of the operator to be deleted.

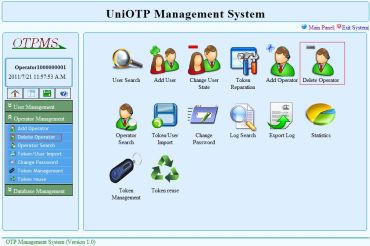

From the administration interface, click on [Delete Operator] from either under the [Operator Management] menu on the left or the [Delete Operator] shortcut on the main panel.

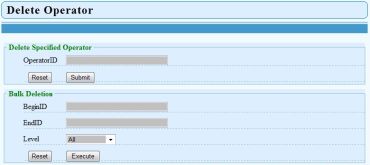

In the "Delete Operator" interface, an operator(s) can be removed in one of two methods: An individual operator account can be deleted by Operator ID; multiple operator accounts can be deleted by a range of Operator IDs, specifying the beginning Operator ID under [BeginID] and ending Operator ID range under [EndID]. All operators in this specified range, inclusive, will be deleted.

Input the corresponding data into either forms, then click [Submit] or [Execute].

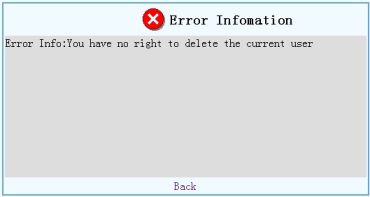

If the current user does not possess sufficient privileges to delete the specified or affected operator, the following error message will be returned.

If deletion was successful, the following message will be displayed.

Search Operator

Under the Operator Search interface, information concerning operator accounts can be searched and viewed. Only operator accounts whose privilege level less than the current user can be searched.

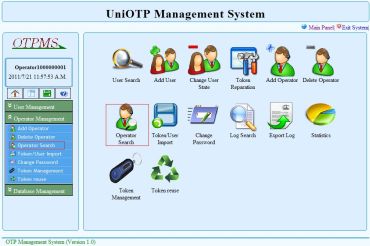

From the administration interface, click on [Operator Search] from either under the [Operator Management] menu on the left or the [Operator Search] shortcut on the main panel.

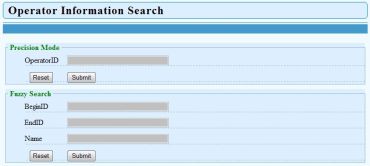

In the "Operator Information Search" interface, an operator(s) can be searched in one of two methods: An individual operator account can be searched by Operator ID; multiple operator accounts can be searched by a range of Operator IDs, specifying the beginning Operator ID under [BeginID] and ending Operator ID range under [EndID], and, in addition, by name. All found operators in this specified range, inclusive, will be returned.

Input the corresponding data into either forms, then click [Submit] or [Execute].

To illustrate, if "1000000001", without quotation marks, as the Operator ID was entered under [OperatorID] then submitted, information about the operator account whose Operator ID is 1000000001 will be returned. However, as 1000000001 is, by default, the Super Operator ID, only the Super Operator has sufficient privileges to view the specified search criteria, and hence is the only operator who can perform and view this search.

Returned operators can be deleted by clicking the icon to the right of the operator in the returned list. Deletion of operators adhere to the requirements in the subsection above, in that operators can only be deleted if the privilege level of the current user is higher the the privilege level of the operator to be deleted.

Searching by Operator ID will yield a results page similar to the screenshot below.

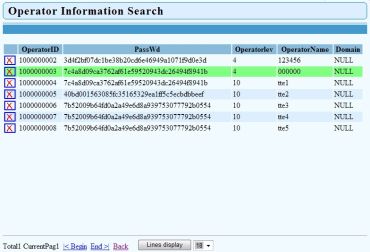

Searching operators in a specific range will yield a results page similar to the screenshot below.

Batch Import Token/User

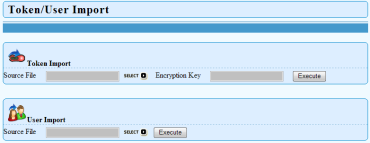

The Token/User Batch Import interface allows the service provider to import multiple tokens in the database. It also can import many users bound to a token at once inside the database. Refer to the picture below to enter the corresponding interface.

In order to import Token files, you need to provide decryption keys for those files, there is no decryption key function for user import. The extension for token files and user information files is [.unif].

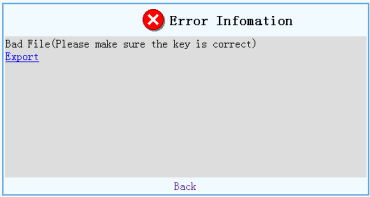

If there is an error with the secret key error or if the file is corrupted, the following message will be displayed.

the token file part will successfully prompt an error information for the error token , there is no line in front of the failure of the token serial number corresponding to the record, you can export the information to the service provider to determine the cause of the error (duplicate import should be excluded due to errors)

If token import succeeds, a message will be displayed specifying the number of token imported

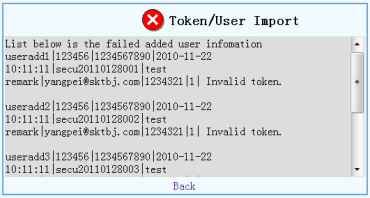

In the case user import has failed, the following error message, containing the details about the concerned users, will be displayed.

Search Log

The log search function provides an interface for searching and viewing logs from the UniOTP Management System, including regular operation and user authentication logs.

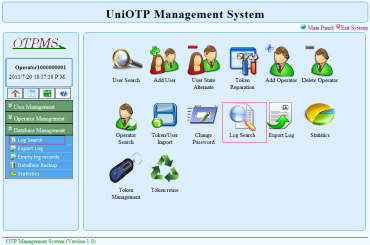

From the administration interface, click on [Log Search] from either under the [Database Management] menu on the left or the [Log Search] shortcut on the main panel.

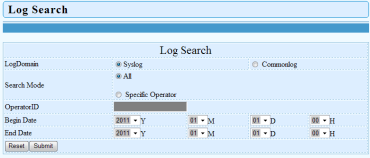

In the Log Search interface, various search criteria is provided to narrow search of logs.

Under "LogDomain", [Syslos] refers to system task logs, and [Commonlog] refers to user authentication logs.

Under "Search Mode", logs can be optionally filtered by specific operators by selecting [Specific Operator], otherwise all logs from all operators will be returned with [All]. In the QueryMode field you can choose logs for a specific operator, once you have specified an operator, the logs information displayed are only for the specified operator (If you specify username, the authentication logs information for this user only will be displayed.)

Under "OperatorID", an Operator ID or username must be entered if [Specific Operator] was selected in "Search Mode". All logs for the specified operator will be returned.

Under "Begin Date" and "End Date", logs can be filtered between two time periods. Set the two fields of logs from [Begin Date] to [End Date] to return, in order of year, month, day and hour.

After specifying search criteria, click [Submit].

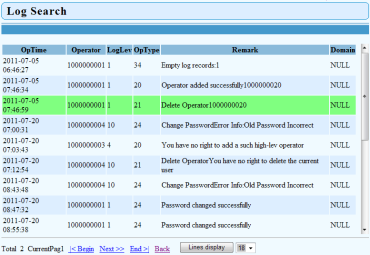

Logs that correlate with specified criteria will be returned, similar to the screen below.

If no results matching the requested search criteria has been found, the following screen will appear.

Export Log

Exports logs to a text file.

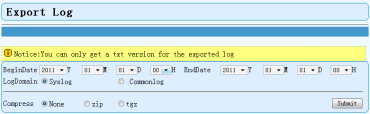

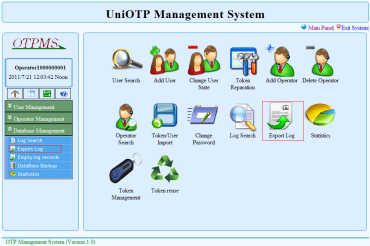

From the administration interface, click on [Export Log] from either under the [Database Management] menu on the left or the [Export Log] shortcut on the main panel.

Under "LogDomain", [Syslos] refers to system task logs, and [Commonlog] refers to user authentication logs.

Under "Begin Date" and "End Date", logs can be filtered between two time periods. Set the two fields of logs from [Begin Date] to [End Date] to return, in order of year, month, day and hour.

Under "Compress", select the type of compression to compress the exported file.

After specifying criteria, click [Submit] to backup the selected logs.

Clear Logs

All specified logs can be deleted from the [Export Log] interface.

From the administration interface, click on [Empty log records] from under the [Database Management] menu on the left.

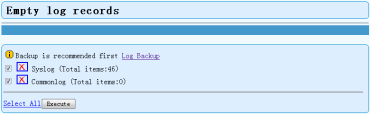

In the "Empty log records" interface, two categories of logs can be cleared. [Syslos] refers to system task logs, and [Commonlog] refers to user authentication logs.

Click [Execute] to clear selected logs.

If deletion of logs was successful, the following message will be displayed.

Backup Database

The database backup feature is used to restore all the needed information.

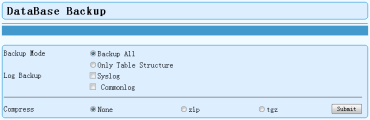

In the [Backup Mode] choose the backup mode. You can choose to backup the whole database, including the tables structure and the data contained inside (You can specify which data you want to backup from the [Log Backup] field). You can also choose to backup only the table structure. In this case, the data contained inside the database will not be backed up.

Statistics

From the Statistics interface, You can see temporal and spatial repartition, make statistics, analyze about authentication strength repartition and operation repartition.

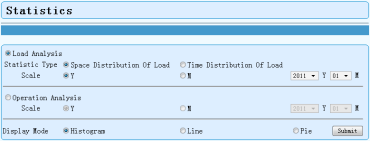

In the "Statistics" interface, two types of analysis can be performed.

In "Load Analysis", two you can perform load statistics. In Operation statistics, you can perform operation statistics. You can choose a scale for these two parts (Year or month). In [Display Mode] field, you can choose the display method, there are three kinds: histograms, line charts, pie charts.

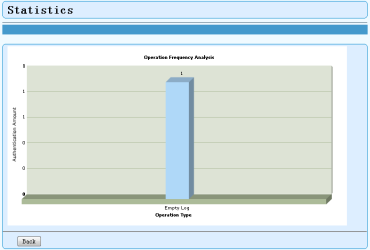

The picture below shows the histogram of operation type analyze.

System Information

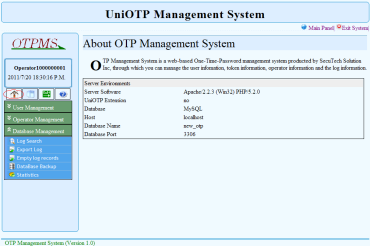

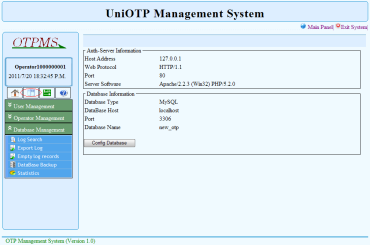

Click the home icon in the left menu to show system information and system configuration page this page displays system information and the current settings list.

System configuration

Using the system configuration page you can change system settings. Click [Config Database] to configure the database.

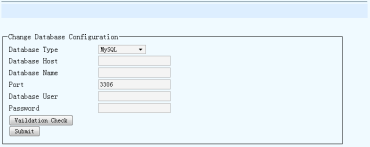

Once you’ve entered the database settings page, you can change database settings such as database host, database name, port, login username, login password. You can also test the connection to the database, after you submitted it, a new configuration file will be created.
